GeoLogger Linx Series

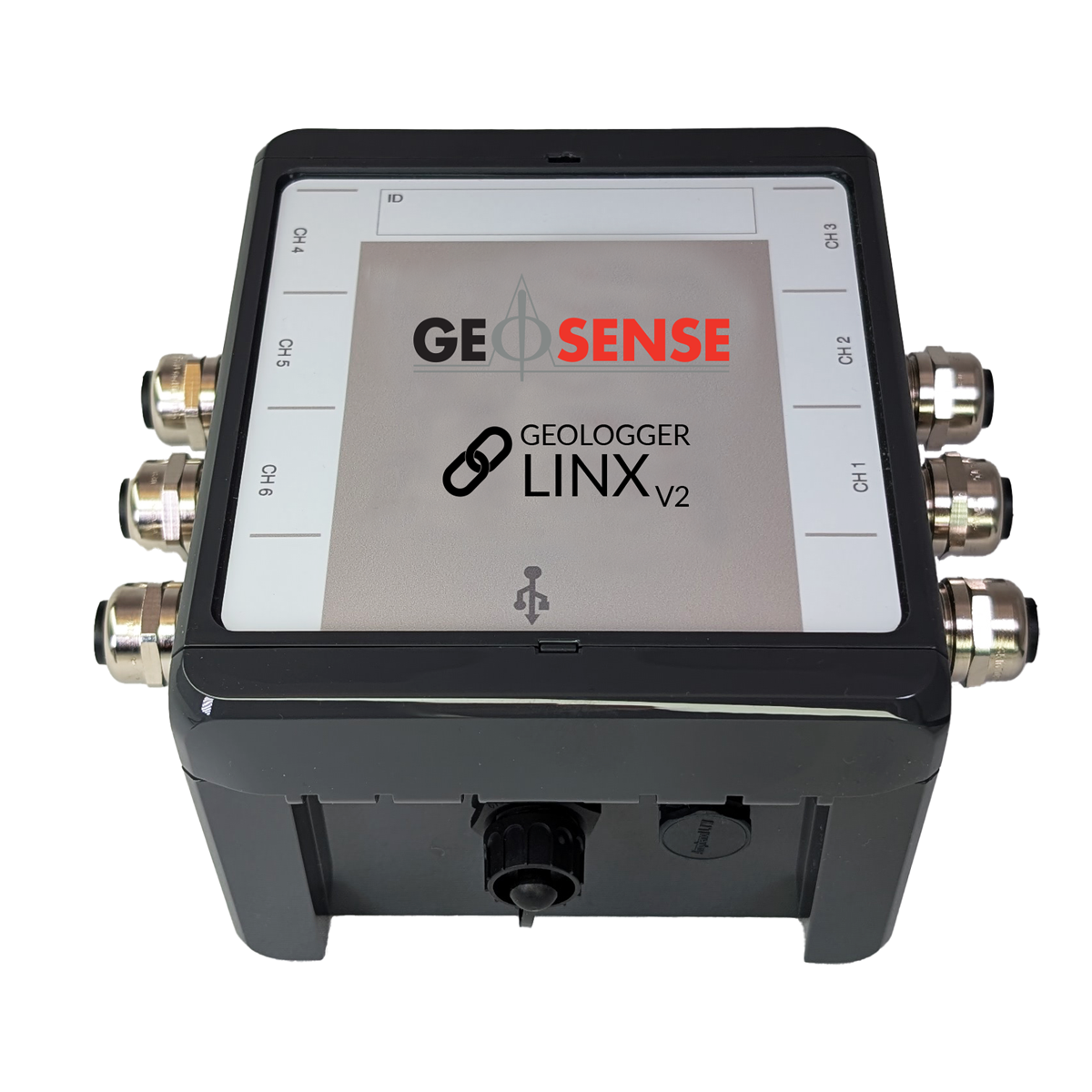

The GeoLogger Linx™ is a range of low-cost battery-powered data loggers for stand-alone monitoring which can be used with all types of vibrating wire sensors such as piezometers, load cells, crack meters, joint meters, strain gauges, pressure cells, weir monitors and extensometers, together with their associated thermistors.
The Linx’s large 8MB or 16MB (channel dependent) internal memory enables the storage of up to 115000 readings. It allows onboard engineering conversions which are saved along with sensor readings. The data is accessible through a mini USB interface, so that data can be transferred easily to an android device through an application in the field in csv format.
Downloads
GeoLogger Linx Series V2.1.13 Stocked
Supplied with a free LINX android application, configuration for sensors, engineering conversion settings and logger parameters, such as date, time, and sweep frequency range, is quick and easy. Automatic uploading of calibration factors can also be done through GeoConnect or through a user created configuration file.
Housed in a rugged Polycarbonate IP67 rated tamper-proof enclosure, GeoLogger Linx™ loggers are suitable for the harsh environment typically found within civil and structural engineering applications.
Stocked Product, Ready for delivery.
TWO YEAR WARRANTY
